This page is part of our Levin information.


Goya Model 174 / GG-174

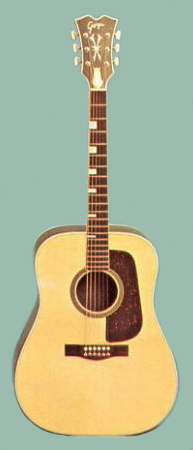

1971 catalog


Specifications:
Goya version of Levin Model 174.
Non-cutaway.
Goliath size:
Body width: 400 mm.
Body length: 505 mm.
Body depth: 95/120 mm.
Fingerboard width: 43 mm.
Scale length: 630 mm.
Spruce top with X-bracing.
Flame maple back & sides.
4-ply bound top.
Single-bound back.
Mahogany bolt-on neck
with adjustable truss rod.
Single-bound ebony fingerboard with bass side pearloid block inlay.
Rosewood bridge with individual height adjustable plastic saddles.
Nickel plated individual Van Gent tuners with metal buttons.
Natural finish.

Introduced: Circa 1969
as a replacement for T-18.

Earliest known example: 3934026 (Circa 1969)

1969:
Renamed GG-174.

4127017 (Circa 1970) - (double pickguards)
5020016 (Circa 1970)
no number (Circa 1970-1971) - (Goya label over Levin label)
2319 (Circa 1971) - (changed pickguard, missing tuner covers)
2376 (Circa 1971)
Latest known example: 54796 (Circa 1972)
