Goya N-22

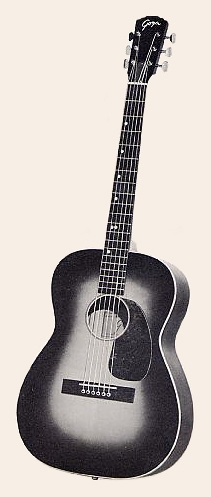

1965 catalog

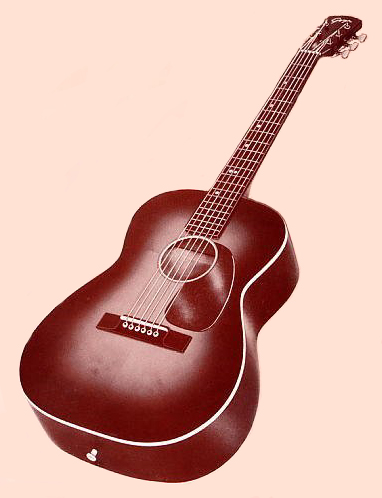

1966 catalog

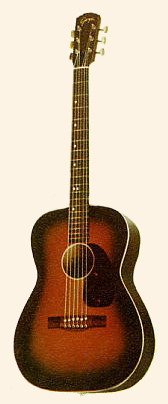

1967 catalog

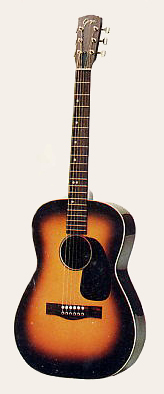

1968 catalog


Specifications:
Goya version of Levin LN 22.
Non-cutaway.
Concert size:
Body width: 360 mm.
Body length: 465 mm.
Body depth: 98 mm.
Fingerboard width: 43 mm.
Scale length: 630 mm.
Spruce top with undetermined bracing.
Birch back & sides.
Single-bound top.
Unbound back.
Mahogany bolt-on neck
with adjustable truss rod.
Unbound rosewood fingerboard with bass side dot inlay.
Rosewood bridge.
Nickel plated individual Van Gent tuners.
Sunburst finish.

Introduced: Circa 1964

Earliest known example: 231507 (Circa 1965)
241824 (Circa 1965)
317914 (1966)
330915 (Circa 1966)
331014 (Circa 1966) - (changed tuners)
346xxx (Circa 1966)
346215 (Circa 1966)

Late 1966:
Belly bridge with individual height adjustable plastic bridge saddles.
(Old style bridge still used in early 1967).

3657012 (1967)
3785006 (Circa 1968)
Latest known example: 381901x (Circa 1968)

Circa 1969:
Replaced by Model 161.
