| Specifications: |
| Body width: 410 mm. |
| Body length: 510 mm. |
| Body depth: 120 mm. |
| Scale length: 630 mm. |
| Spruce top. |
| Maple sides. |
| Mahogany back. |
| 4-ply bound top. |
| Single-bound back. |
| Pin bridge. |
| Adjustable truss rod. |
| Single-bound fingerboard with block inlay. |
| Individual tuners. |
| Sunburst finish. |
| 10 year warranty. |
|
| Offered in two versions: |

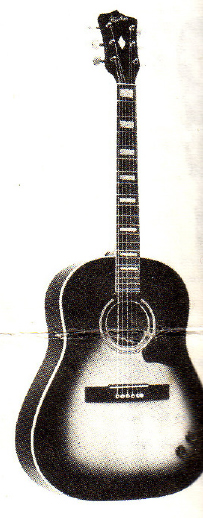

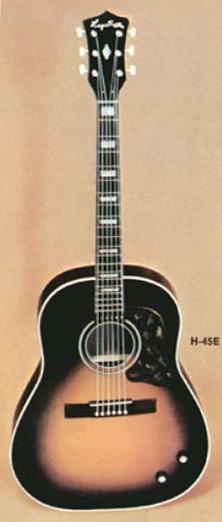

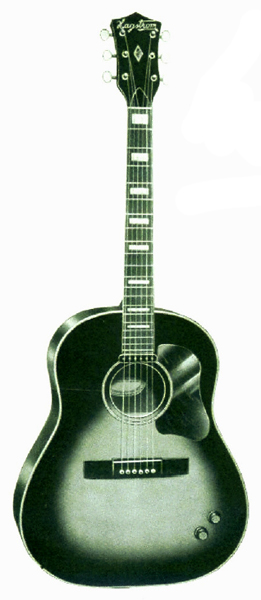

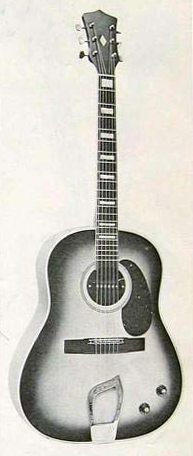

| Fully acoustic (J-45) or with pickup and controls (J-45 EL). |
|
| Available for export under the Hagström brand. |

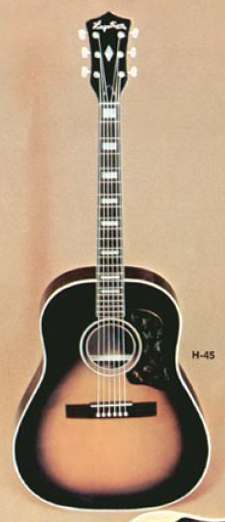

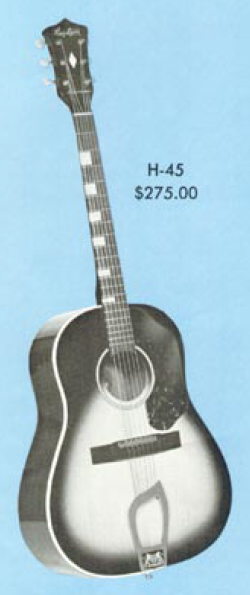

| Marketed in Canada and the U.S.A. as Hagström H-45. |
|

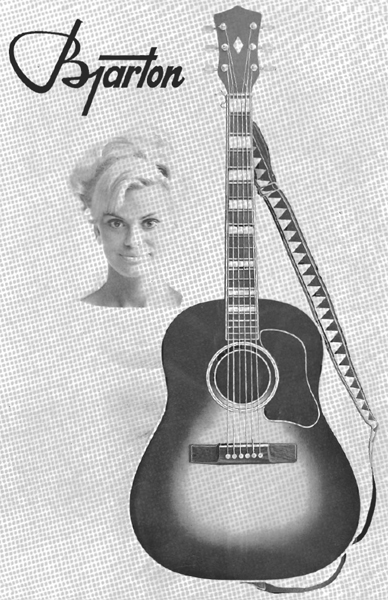

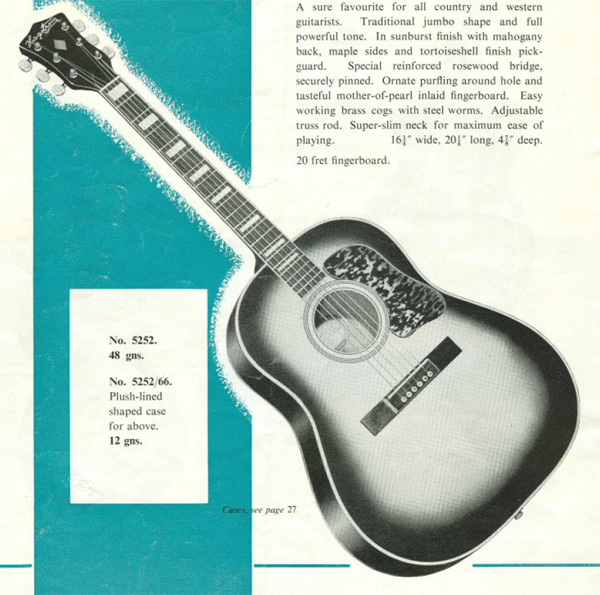

| Introduced: Circa 1963 as Bjärton J-45 Western or Jumbo J-45 |
|
| Earliest known example: 36779 (1963) |
| 48694 (1964) - (Hagström) - (changed tuners, España label) |
| 54133 (1964) - (Hagström J-45 EL) |
| 60504 (1964) - (J-45 EL) |
|
| Circa 1965: |
| Mahogany back and sides. |
|
| 79362 (1966) - (Hagström) |
|
| Circa 1967: |
| Different pickup design (J-45 EL). |
|
| 86317 (1967) - (J-45 EL) |
| 87802 (1967) - (J-45 EL) |
|
| Circa 1967: |
| Unbound soundhole. |
| Pickup moved to soundhole (J-45 EL). |
| Changed pickguard shape. |
| Adjustable bridge. |
| Hagström tailpiece. |
| Bolt-on neck. |
| Truss rod adjustable from body end. |
| String retainer bar. |
| Unbound fingerboard with bass side block inlay. |
| Rounded fingerboard end. |
|
| 93424 (1967) - (Hagström) |
|
| Circa 1968: |
| Changed pickguard shape. |
| No string retainer bar. |
| Single-bound fingerboard with centered block inlay. |
|
| 103796 (1969) |
| 120947 (1971) - (Hagström) - (changed tuners) |
| 128278 (1972) - (J-45 EL) |
| Latest known example: 137575 (1973) - (Hagström) |
|
