| Specifications: |
| Spruce top. |
| Maple back & sides. |
| 7-ply bound top. |
| Single-bound back. |
| Hagström P24 pickup unit. |
| Hagström adjustable bridge. |
| Trapeze tailpiece or Hagström Tremar. |
| Mahogany neck. |
| Unbound headstock with or without inlay. |
| Adjustable truss rod. |
| Unbound rosewood fingerboard with dot |
| inlay or three-piece block inlay. |
| Individual tuners. |
| Sunburst finish. |
|

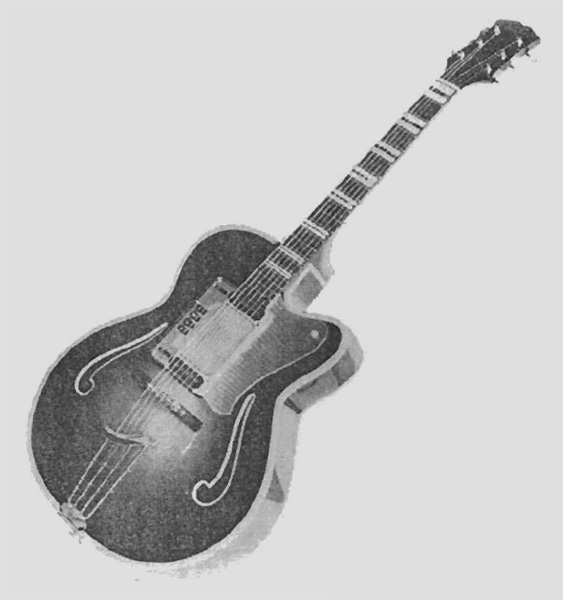

| Although not present in any of the known |
| catalogs, this model appears to be a |
| Orkestergitarr (Orchestra guitar) |
| electrified with a Hagström P24 pickup unit. |
|
| Variations in neck ornamentations has been |
| seen but they were all noted as |
| "Orkestergitarr P24" in the shipping ledgers. |
|
| The shipping ledgers also includes two |
| "Orkestergitarr P26" which probably is |
| the same model but with a |
| Hagström P26 pickup unit. |
|
| Introduced: Circa 1959 |
|
| Earliest known example: 14064 (Circa 1959) |
| 17417 (Circa 1960) - (changed tailpiece) |
| 17422 (Circa 1960) - (changed tailpiece & bridge) |
| 17427 (Circa 1960) |
| 17526 (Circa 1960) |
| 21486 (Circa 1961) - (missing pickguard, changed bridge) |
| 21655 (Circa 1961) |
| 28527 (Circa 1962) |
| 31475 (Circa 1962) |
|
| Circa 1962: |
| Non-adjustable truss rod. |
|
| unknown number (Circa 1962) |
| Latest known example: 31931 (Circa 1962) |
|
