| Specifications: |

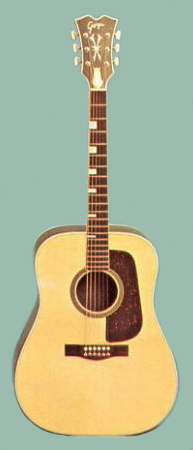

| Goya version of Levin Model 174. |
| Non-cutaway. |
| Goliath size: |
| Body width: 400 mm. |
| Body length: 505 mm. |
| Body depth: 95/120 mm. |
| Fingerboard width: 43 mm. |
| Scale length: 630 mm. |
| Spruce top with X-bracing. |
| Flame maple back & sides. |
| 4-ply bound top. |
| Single-bound back. |
| Mahogany bolt-on neck |
| with adjustable truss rod. |
| Single-bound ebony fingerboard with bass side pearloid block inlay. |
| Rosewood bridge with individual height adjustable plastic saddles. |
| Nickel plated individual Van Gent tuners with metal buttons. |
| Natural finish. |
|
| Introduced: Circa 1969 |
| as a replacement for T-18. |
|
| Earliest known example: 3934026 (Circa 1969) |
|
| 1969: |
| Renamed GG-174. |
|
| 4127017 (Circa 1970) - (double pickguards) |
| 5020016 (Circa 1970) |
| no number (Circa 1970-1971) - (Goya label over Levin label) |
| 2319 (Circa 1971) - (changed pickguard, missing tuner covers) |
| 2376 (Circa 1971) |
| Latest known example: 54796 (Circa 1972) |
|
