Goya T-14

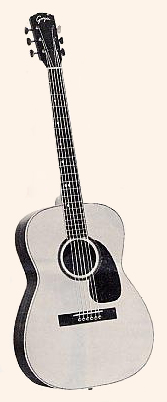

1965 catalog

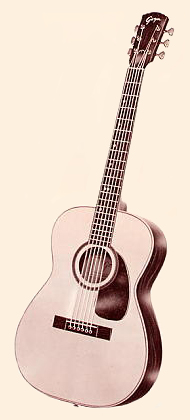

1966 catalog

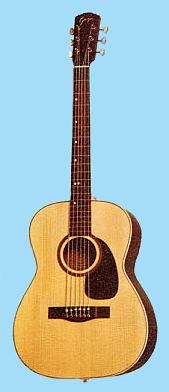

1967 catalog


Specifications:
Goya version of Levin LT 14.
Non-cutaway.
Concert size:
Body width: 360 mm.
Body length: 465 mm.
Body depth: 98 mm.
Fingerboard width: 43 mm.
Scale length: 630 mm.
Spruce top with ladder bracing.
Mahogany back & sides.
4-ply bound top.
Single-bound back.
Mahogany bolt-on neck
with adjustable truss rod.
Unbound rosewood fingerboard with bass side dot inlay.
Rosewood bridge.
Nickel plated individual Van Gent tuners.
Natural finish.

Introduced: ca 1964
as a replacement for S-14.

Earliest known example: 230535 (ca 1965)
240904 (ca 1965)
282022 (1966)
310226 (1966)
320739 (1966)
340520 (ca 1966)

Late 1966:
Belly bridge with individual height adjustable plastic bridge saddles.
(Old style bridge still used in early 1967).

350317 (ca 1966)
355641 (1967)
3650074 (1967)
Latest known example: 3721001 (1968)
