This page is part of our Levin information.


Goya T-23

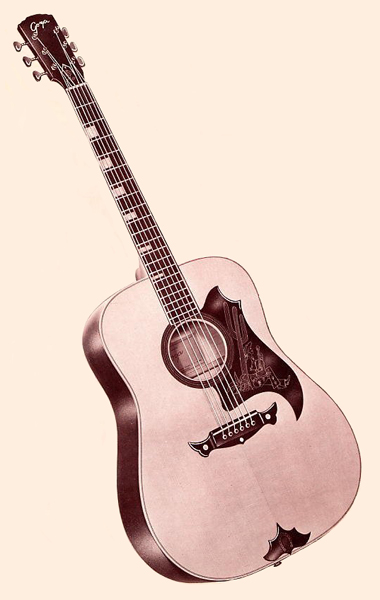

1966 catalog

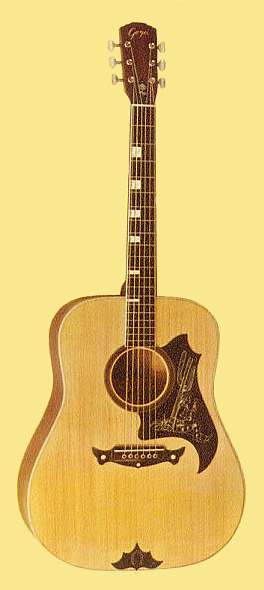

1967 catalog

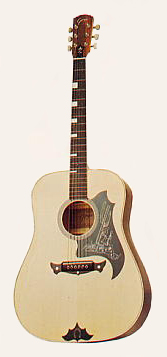

1968 catalog


Specifications:
Non-cutaway.
Goliath size:
Body width: 400 mm.
Body length: 505 mm.
Body depth: 95/120 mm.
Fingerboard width: 43 mm.
Scale length: 630 mm.
Spruce top with undetermined bracing.
Flame maple back & sides.
4-ply bound top.
Single-bound back.
Mahogany bolt-on neck
with adjustable truss rod.
Single-bound ebony fingerboard with bass side pearloid block inlay.
Ebonized bridge.
Nickel plated individual Van Gent tuners with metal buttons.
Natural finish.

Introduced: Circa 1966

Earliest known example: 316602 (1966)
316608 (1966)
316616 (1966)

Late 1966:
Bridge with individual height adjustable plastic bridge saddles.
(Old style bridge still used in early 1967).
Also available as Levin LT 23.

332911 (Circa 1966)
Latest known example: 3761998 (Circa 1968)
