| Specifications: |

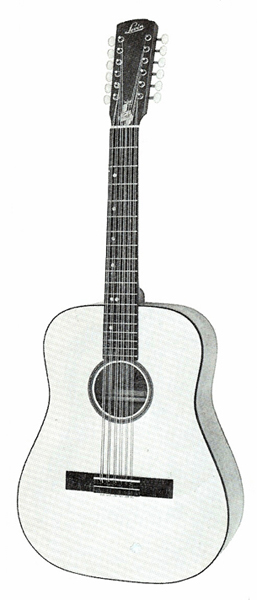

| Levin version of Goya TS-4. |
|
| 12-string. |
| Non-cutaway. |
| Goliath size: |
| Body width: 400 mm. |
| Body length: 505 mm. |
| Body depth: 95/120 mm. |
| Fingerboard width: 51 mm. |
| Scale length: 630 mm. |
| Spruce top with undetermined bracing. |
| Maple back & sides. |
| Single-bound top. |
| Single-bound back. |
| Mahogany bolt-on neck |
| with adjustable truss rod. |
| Metal truss rod cover. |
| Unbound headstock. |
| Unbound rosewood fingerboard with bass side pearl dot inlay. |
| Rosewood bridge. |
| Nickel plated tuners white plastic buttons. |
| Natural finish. |
| One year warranty. |
|
| Introduced: Circa 1967 |
|
| Earliest known example: 485238 (1967) |
| 487420 (1968) - (added pickguard, Levin serial number on headstock & Goya serial number on label) |
| 491195 (1968) |
|
| Circa 1969: |
| Five year warranty. |
|
| 493254 (1969) |
| 497508 (1969) - (added pickguard) |
|
| Circa 1970: |
| Set neck. |
| Belly pin bridge with six pins and six individual height adjustable plastic bridge saddles. |
|
| 502170 (1970) |
| 506616 (1970) |
| Latest known example: 511399 (1971) |
|
