| Specifications: |
| Non-cutaway. |
| Concert size: |
| Body width: 360 mm. |
| Body length: 465 mm. |
| Body depth: 98 mm. |
| Fingerboard width: 49 mm. |
| Scale length: 630 mm. |
| Spruce top with undetermined bracing. |
| Flame maple back & sides. |
| 6-ply bound top. |
| Single-bound back. |
| Sound hole monogram. |
| Mahogany neck with non-adjustable T-shaped duraluminum truss rod. |
| Unbound rosewood fingerboard. |
| Rosewood bridge. |
| Nickel plated strip tuners with white plastic buttons. |
| Natural finish. |
| One year warranty. |
|
| This model was constructed to be used |
| with either steel or nylon strings. |
|

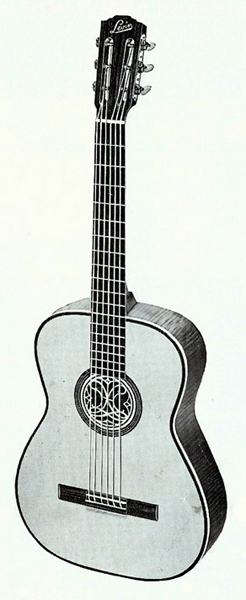

| Introduced: Circa 1955 |
|
| Earliest known example: 332484 (1955) |
| 341645 (1956) |
| 348649 (1956) |
| 351756 (1957) |
| 356534 (1957) |
|
| Circa 195?: |
| Changed rosette. |
|
| 376946 (1958) |
| 383620 (1958) |
| 410173 (1960) |
|
| Circa 196?: |
| No inlay on bridge. |
|
| Circa 1962: |
| Ten year warranty. |
|
| 430399 (1963) |
| 438504 (1964) |
| 439937 (1964) |
| 470433 (1966) |
|
| Circa 1972: |

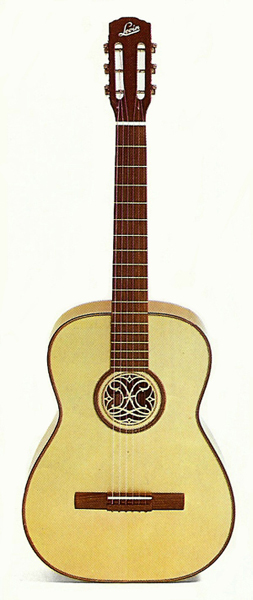

| Renamed Model 116 Pugh. |
|
| Latest known example: 557098 (1977) |
|
