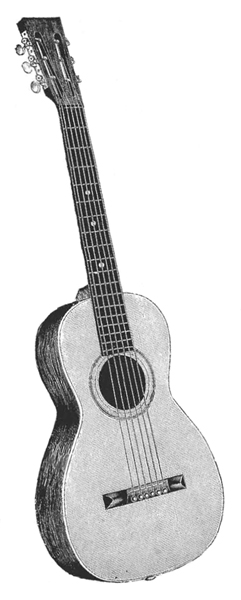

| Specifications: |
| Non-cutaway. |
| Body width: 315 mm. |
| Body length: 460 mm. |
| Body depth: 78 mm. |
| Spruce top with ladder bracing. |
| Birch back & sides. |
| Unbound top. |
| Unbound back. |
| Unbound headstock. |
| Unbound ebonized fingerboard with mother-of-pearl dot inlay. |
| Silver plated frets. |
| Ebonized bridge. |
| Bridge pins and strap button with mother-of-pearl inlay. |
| Mahogany finished back & sides. |
| Natural finished top. |
| Also available with tailpiece (Model 1 S). |
|
| Introduced: Circa 1900 |
|

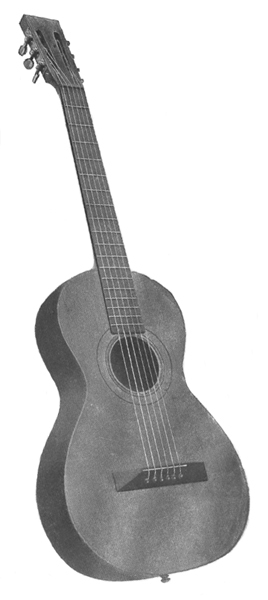

| Circa 1906: |
| Changed rosette. |
| Unbound ebonized fingerboard with no inlay. |
| Brass frets. |
| Brass tuners. |
| Rosewood finished back & sides. |
|
| Earliest known example: 11669 (1909) |
|
| Circa 1910: |
| Walnut fingerboard with no inlay. |
|
| 12614 (1910) |
| 26205 (1915) |
|
| Circa 1918: |
| Walnut fingerboard with mother-of-pearl dot inlay. |
|
| 40744 (1918) |
|

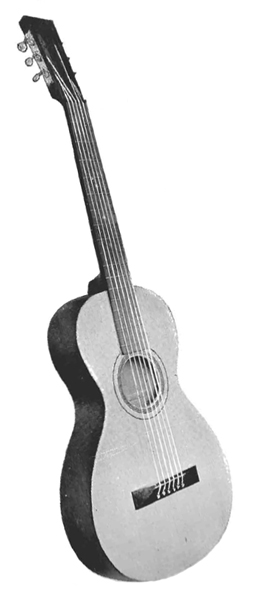

| Circa 1923: |
| Silver plated frets. |
|
| 51843 (1923) - (added back strip) |
| 54173 (1924) |
| Latest known example: 54176 (1924) |
|
