Levin Model 22

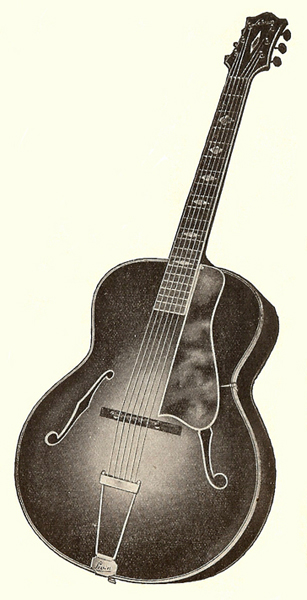

1940 catalog


Specifications:
Non-cutaway.
Body width: 445 mm.
Body length: 530 mm.
Romanian hand carved spruce top with undetermined bracing.
Flame maple back & sides.
Triple-bound top with single-bound f-holes.
Single-bound back.
Single-bound pickguard.
Flame maple neck with non-adjustable T-shaped duraluminum truss rod.
Single-bound headstock with mother-of-pearl diamond inlay.
Single-bound rosewood fingerboard with mother-of-pearl diamond inlay.
Nickel plated hardware.
Sunburst finish.
Ten year warranty.
Also available as 4-string Tenor Guitar (Model 22 TG).

Introduced: Circa 1940

Earliest known example: 121523 (1940)
Latest known maple example: 126637 (1941) - This example has a changed fingerboard.
138630 (1943)
158526 (1945)
184953 (1947)

Circa 1942:
Walnut or flame maple back & sides.
Mahogany or maple neck.
Walnut fingerboard.
Pearloid fingerboard inlay.

Earliest known walnut example: 139728 (1943) - (different headstock inlay, changed bridge & tailpiece)
144053 (1944)
145349 (1944)
147243 (1944) - (changed pickguard)
150524 (1944)
159749 (1945)
165905 (1945)
Latest known example: 184952 (1947)
