This page is part of our Levin information.


Levin WR 34 Ragtime

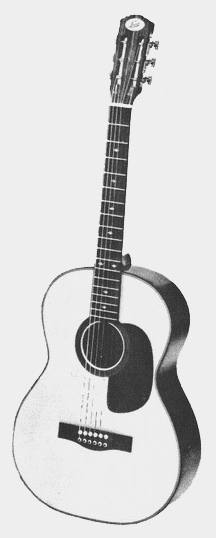

1973 catalog

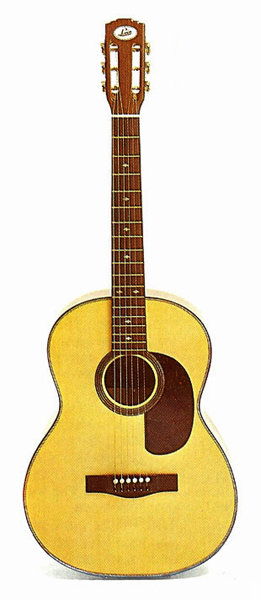

1975 catalog

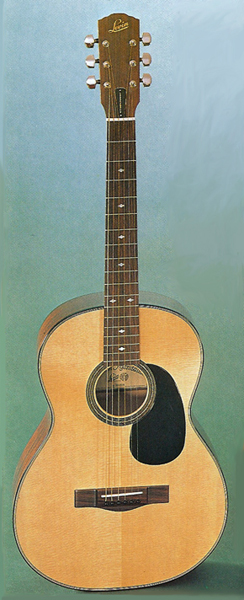

1978 catalog


Specifications:
Non-cutaway.
Body width: 370 mm.
Body length: 485 mm.
Body depth: 90/110 mm.
Fingerboard width: 49 mm.
Scale length: 630 mm.
Spruce top with slanted fan bracing.
Flame maple back & sides.
5-ply bound top.
Single-bound back.
Mahogany neck with non-adjustable T-shaped duraluminum truss rod.
Unbound slotted headstock with silver logo badge decal.
Unbound rosewood fingerboard with mother-of-pearl diamond inlay.
Rosewood bridge with individual height adjustable plastic bridge saddles.
Nickel plated strip tuners.
Natural finish.
Ten year warranty.

Introduced: ca 1973

Earliest known example: 526810 (1973)
529225 (1973)
529947 (1973)
530015 (1973)
530756 (1974)
565110 (1979)

ca 1974:
Logo badge decal.
X-bracing.

533992 (1974) - (converted to non-adjustable bridge saddle)
535691 (1974)
537009 (1974)
xxxxxx (Mid 1970s)
xxxxxx (Mid 1970s)
539242 (1975) - (converted to non-adjustable bridge saddle)
539524 (1975)

ca 1975:
Regular Levin decal logo.

549123 (1976)

ca 1976:
Non-adjustable bridge saddle.

549134 (1976)
549795 (1976)

ca 1977:
Solid headstock.
Adjustable truss rod.
Black plastic truss rod cover.
Changed pickguard shape.

560518 (1977)

ca 1977:
Mahogany back and sides.

560524 (1977)

ca 1979:
No truss rod cover.
Truss rod adjustable from soundhole.
Chrome plated individual Levin Schaller tuners.
Three year warranty.

565755 (1979) - (changed tuners)
565802 (1979)
566701 (1979)
566720 (1979)

ca 1979:
Changed rosette design.

566726 (1979)

ca 1979:
Made in Japan.
Double fingerboard inlay on 7th fret.

L93140 (ca 1979)
L93352 (ca 1979)
Latest known example: L95580 (ca 1979)
